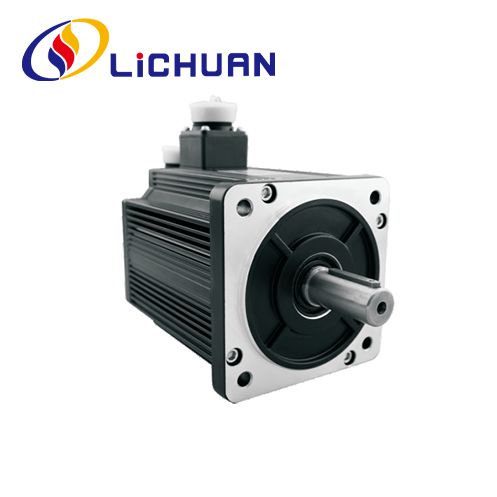

130mm Flange Series AC 220V Servo Motor

Kanthi pengalaman pirang-pirang taun ing produksi 130mm Flange Series AC 220V Servo Motor, LICHUAN® bisa nyedhiyakake macem-macem produk. Kualitas tinggi 130mm Flange Series AC 220V Servo Motor bisa ketemu akeh aplikasi, yen sampeyan perlu, njaluk layanan online pas wektune babagan produk.

Kirim Pitakonan

Deskripsi Produk

LICHUAN® nampani sampeyan kanthi apik ing 130mm Flange Series AC 220V Servo Motor saka pabrik kita. Produk kita disertifikasi CE lan saiki duwe persediaan pabrik sing akeh. Kita bakal nyedhiyani sampeyan layanan apik lan pabrik diskon prices

Motor servo AC seri 130 ngemot spesifikasi daya 1.0KW 1.3KW 1.5KW 2KW 2.6KW 2.3KW 3.0KW 3.8KW, motor servo mlaku kanthi lancar, swara cilik banget, cocog kanggo macem-macem aplikasi kontrol tliti dhuwur kanggo peralatan otomatisasi industri. motor servo Motor servo iki ndhukung 2500ppr, incremental 17bit, encoder absolut 17bit lan Break.Motor servo iki bisa digunakake ing macem-macem mesin otomatis, kayata CNC, mesin panggilingan, mesin pengepakan, mesin tas, laser, mesin engraving, lsp.

Spesifikasi Teknis

Model motor	LCMT-10LO -130M04025	LCMT-13LOO -130M05025		LCMT-15LOO -130M06025		LCMT-20LOO -130M07725			LCMT-10MOO -130M10010		LCMT-15MOO -130M10015		LCMT-26M□□ -130M10025			LCMT-23M□□ -130M15015			LCMT-30M□□ -130M15020		LCMI-38MOO -130M15025
Daya Rated (KW)	1.0	1.3		1.5		2.0			1.0		1.5		2.6			2.3			3.0		3.8
Tegangan Rated (V)	220	220		220		220			220		220		220			220			220		220
Rated saiki (A)	4.0	5.0		6.0		7.5			4.5		6.0		10			9.5			12		13.5
kacepetan Rated (rpm)	2500	2500		2500		2500			1000		1500		2500			1500			2000		2500
Nyekel torsi (N.m)	4.0	5.0		6.0		7.7			10		10		10			15			15		15
Peaktorque(N.m)	12	16		18		22			20		25		25			30			30		30
Konstanta tegangan (V/1000r/min)	72	68		65		68			140		103		70			114			80		67
Koefisien torsi (N.m/A)	1.0	1.0		1.0		1.03			2.2		1.67		1.0			1.58			1.25		1.11
Inersia rotor (Kg.m²)	0.85×10*3	1.06×10 ·3		1.26×10*3		1.53×10*3			1.94×10 ·3		1.94×10*3		1.94×10*3			2.77×103			2.77×10~3		2.77×10³
Resistansi Fase (Q)	2.76	1.84		1.21		1.01			2.7		1.29		0.73			1.1			0.64		0.49
Fase Induktansi (mH)	6.42	4.9		3.87		2.94			8.8		5.07		2.45			4.45			4.45		1.68
Mekanik wektu konstan (Ms)	2.32	2.66		3.26		3.80			3.26		3.93		3.36			4.05			4.05		3.43
Bobot (Kg)	7.7	8.2		8.9		10			11.5		11.5		11.5			14.4			14.4		14.4
Nomer baris encoder (PPR)	2500 / Encoder Nilai Absolute
Kelas insulasi	Kelas B (130° ℃)
Kelas safety	IP66
Gunakake lingkungan	Suhu: -20 ° ℃ ~ + 50 ° ℃ Kelembapan: Ing ngisor 90% RH Ora ana dewing
Motor winding plug	Nggulung kabel timbal		u					v					w						pe
	Plug nomer seri		2					3					4						1
Encoder plug	Kabel timbal sinyal		5V		ov	A+	B+		Z+	-	-	-		U+	V+		W+	-		-	-	pe
	Plug nomer seri		2		3	4	5		6	7	8	9		10	11		12	13		14	15	1

Cathetan panginstalan

1. Nalika bagean instalasi / disassembly ana ing mburi poros motor, aja kenek poros kanthi pasukan, yen encoder ing sisih liyane poros bisa rusak.
2. Nyoba kanggo supaya geter saka basis poros, digunakake batang bisa rusak.

130 Seri
Torsi Dirating (N .m)	4.0	5.0	6.0	7.7	10			15
Torsi Dirating (N .m)	4.0	5.0	6.0	7.7	1000 rpm	1500rpm	2500 rpm	1500rpm	2000rpm	2500 rpm
LA (Length)	166	171	179	192	213		209	241	231
LB (Panjang Poros)	57	57	57	57	57		57	57	57
LC (Kedalaman Rabbet)	5.0	5.0	5.0	5.0	5.0		5.0	5.0	5.0
LD (Kedalaman Flange)	14	14	14	14	14		14	14	14
LE (Diameter Kelinci)	110	110	110	110	110		110	110	110
LF (Ukuran Flange)	130	130	130	130	130		130	130	130
LG (Pitch Diagonal)	145	145	145	145	145		145	145	145
LZ(Bolongan Instalasi)	9.0	9.0	9.0	9.0	9.0		9.0	9.0	9.0
S (Diameter Poros)	22	22	22	22	22		22	22	22
W(Jembaré Slot Tombol)	6.0	6.0	6.0	6.0	6.0		6.0	6.0	6.0
H (Kunci kanggo wheelbase)	24.5	24.5	24.5	24.5	24.5		24.5	24.5	24.5
Dawane awak kanthi rem	223	228	236	249	294		290	322	312
